GXZD-C Series automatic constant tension controller

Current location:Home  / Product  / Tension controllers series / GXZD-C Series automatic constant tension controller

Products Show

GXZD-C Series automatic constant tension controller

GXZD-C Series automatic constant tension controller
  • Stable quality: the implementation of the whole process quality monitoring, meticulous, and all aspects of testing!
  • Reasonable price: effective internal cost control, reducing expenses and benefiting customers!
  • Fast delivery: advanced production line, sufficient stocking, shorten the delivery time!
  • Tel:86-577-65138780

Product Details

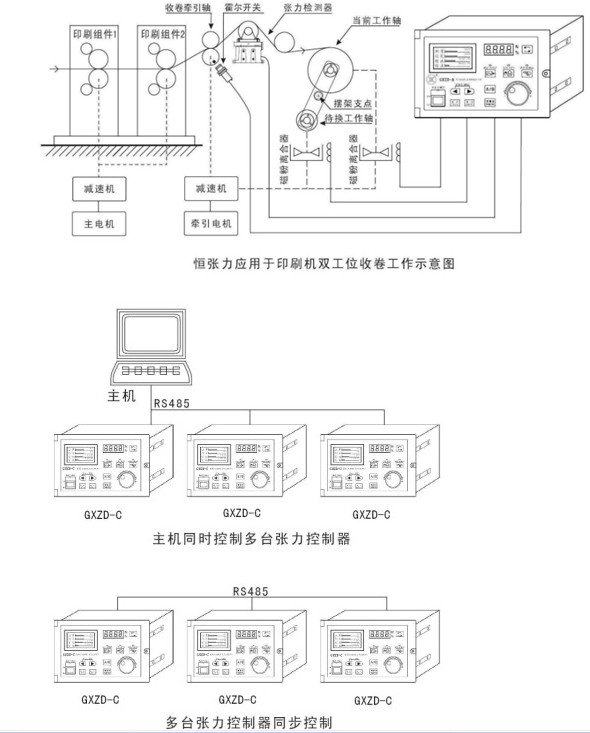

GXZD-C series high-precision automatic constant tension controller is designed for the printing press, which has two output bits of the duplex printing presses rolling to achieve pre-start automatically change axis, with automatic feeding and cutting output cut .

Features:

1, optional LCD display in Chinese or English

2 easy automatic and manual switch

3, the tension detector wiring is simple and convenient

4, convenient parameter setting

5, with duplex output for axis

6, with a duplex Pre-start output

7, and more easily communicate through the Modbus protocol machine management

Measurement accuracy

<±1Newton

Sampling speed

100milliseconds

The main output way

30V/0-1.5A×2Lk output after magnetic powder clutch or magnetic powder brake

Aux output

2 "DC 0-5V analogue signal output

Communication function

RS-485 But many sets of tension controller synchronization using

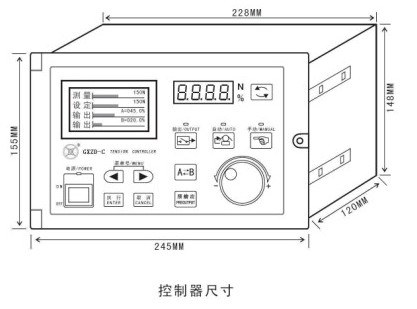

Shape dimension

245×155×140(mm)(W×H×D)

Installation dimension

230×150×120(mm)(W×H×D)

Electricity source

180 to 240V AC 50/60Hz

Due to design type manufacturing specifications are subject to change or size.
